Decade Dial Resistance Box

• Resistors : MANGANIN WIRES wound in Bifilar Fasshion Non-Inductive Winding for Less Self Capacitance
• Accuracy : Individual Resistors Checked upto 0.1% and then mounted to silver Contact Switches
• Wattages : 0.5 Watts
• Switches : With Silver Contacts for minimal contact resistance. Double spring snap action for perfect locking in position. Diallyl Pthalate Wafers to withstand high temperature and has very high Insulation resistance.
• Life Cycle of switches : Minimum 10000 operations
• Panel : Hylam / Aluminum anodized
• Cabinet : Polished wooden / powder metal cabinets
• The instrument is very compact and easy to use.

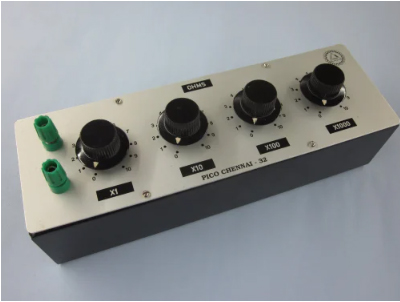

Four Dial Decade Resistance Box

Accuracy	0.1%
Decade Type	Resistance
Switch Type	Rotary
Brand	PICO
Box Type	Resistance Decade Box

• TK 155in steps of1,10,100,1000OHMS
• TK 156Ain steps of 0.01,0.1,1,10OHMS
• TK156Bin steps of 0.1,1,10,100OHMS
• TK156Cin steps of 10,100,1000,10000OHMS

---

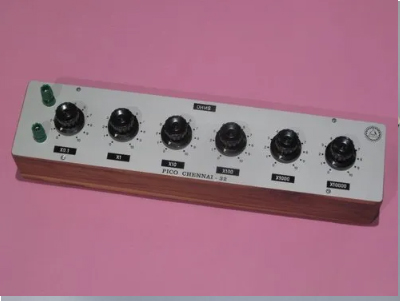

Six Dial Decade Resistance Box

Accuracy	0.1%
Decade Type	Resistance
Switch Type	Rotary
Brand	PICO
Box Type	Resistance Decade Box

• TK159Ain steps of0.01,0.1,1,10,100,1000Ω
• TK159Bin steps of0.1,1,10,100,1000,10000Ω

---

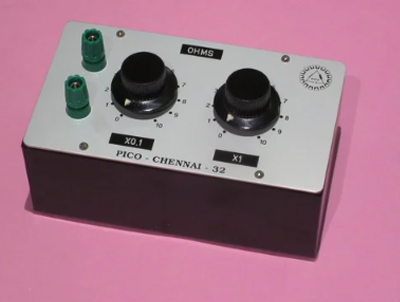

Two Dial Decade Dial Resistance Box

Brand

PICO

• TK151Ain steps of0.01,0.1Ω
• TK151Bin steps of0.1,1Ω
• TK151Cin steps of1,10Ω
• TK152Ain steps of10,100Ω
• TK152Bin steps of100,1000Ω
• TK152Cin steps of1000,1000Ω

---

Three Dial Decade Resistance Box

Brand

PICO

• TK 153Ain steps of0.1,1,10Ω
• TK 153Bin steps of1,10,100Ω
• TK 153Cin steps of10,100,1000Ω
• TK 153Din steps of100,1000,1000Ω
• TK 154in steps of0.01,0.1,1Ω

---

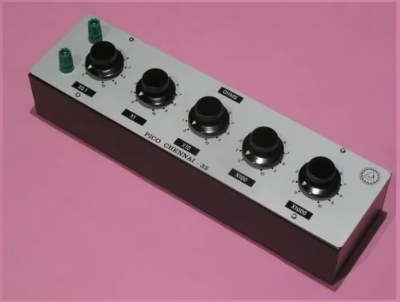

Five Dial Decade Resistance Box

Brand

PICO

• TK157Ain steps of0.01,0.1,1,10,100Ω
• TK157Bin steps of0.1,1,10,100,1000Ω
• TK158in steps of10,100,1000,10000Ω

---

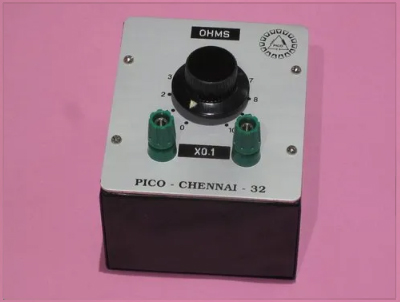

Single Dial Decade Resistance Box

Brand

PICO

• TK150A in steps of0.01Ω
• TK150B in steps of0.1Ω
• TK150C in steps of1Ω
• TK150D in steps of10Ω
• TK150E in steps of100Ω
• TK150F in steps of1000Ω

---

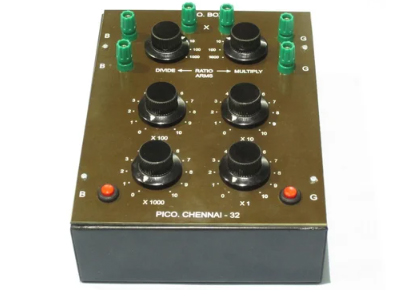

Post Office Box

Usage/Application	RESISTANCE MEASUREMENT
Shape	Rectangular
Brand	PICO
Box Type	Resistance Decade Box
Model Name/Number	180

• TK150A in steps of0.01Ω
• TK150B in steps of0.1Ω
• TK150C in steps of1Ω
• TK150D in steps of10Ω
• TK150E in steps of100Ω
• TK150F in steps of1000Ω

---
