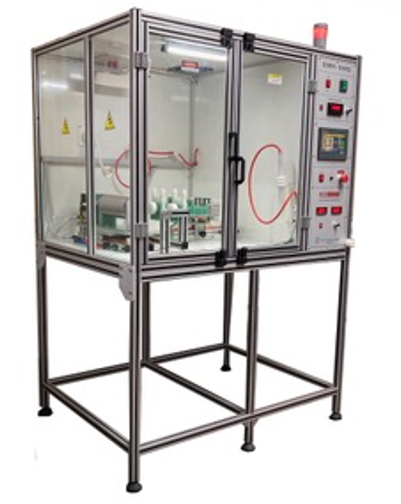

ELECTRO SPINNING V1

ELECTRO SPINNING V1

Description Specification
High Voltage Power Supply
  • Variable from 0 to 40KV
  • Max. Current 0.4mA
  • With DIGITAL voltmeter & Microammeter for voltage and current display.
Syringe Pump
Two pumps are provided with same specifications for coaxial spinning to set different flow rates for core & shell
  • To dispense from 2 nos. of Standard Syringes
  • Fabricated using insulated material and minimal metallic components to work under high voltage conditions and to avoid electric field distortions around the unit
  • Motor control thro’ programmable HMI & PLC to control and indicate flow rate & syringe type.
  • Flow rates 0.1uL/min to 20ml/min
  • Time and volume-based control
  • Direct syringe based spinning no tubing is required.
Coaxial spinneret Multi nozzle
  • Spinneret for coaxial spinning
  • Chemical resistant Tubing to connect syringe with spinneret – 10 meters Multi nozzle spinneret with 5 needles
Orientation Horizontal & Vertical Arrangement
Drum Collector Disc Collector
  • Length 200 mm dia 100 mm
  • Width 10mm. dia 100 mm (Optional)
  • Rotating Speed 500 – 4000 RPM
Plate Collector 200 x 200 mm
Distance Adjustment
X in Veritcal
Z in horizontal
Manual adjustment of distance between Syringe and Collector. 0 to 250 mm
Translation Stage for Collector assembly Translation stage movement of 150mm for mounting Collector Assembly (Y Axis )
Cabin Heating Temperature & Humidity Display Provision to heat cabin up to 40oC Digital Display of Cabin Temperature & Humidity
Table Top Instrument 1200 x 900 x 900 approx (LxBxH) Subject to change
Electrospinning Enclosure
Safety & Additional Features of Cabinet 		Aluminum Strut frame with clear glass panel on the Left side and front doors.
  • With Static removal device – Residual Charge Discharge Stick
  • Safety switch to switch off H.V. Power supply when door is opened.
  • Hazard lamp to indicate that H.V. Power supply is on.
  • Proper cabin lighting
  • Back Light to view Needle tip
  • Exhaust Fan-ventilation
  • Emergency Stop.
  • Rubber floor mat for user safety
>OPTIONALS
Syringe Heater Stainless steel / glass syringe heating upto 250°C
Inert / Vacuum Mini Chamber to spin with static collector under inert gas or vacuum.
