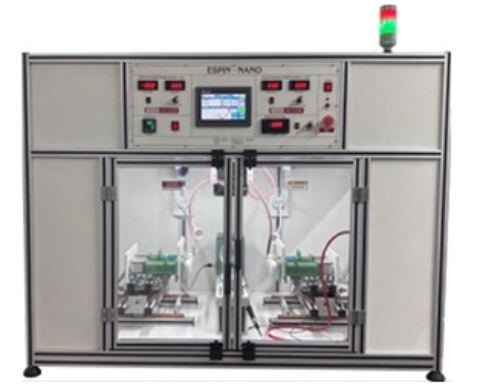

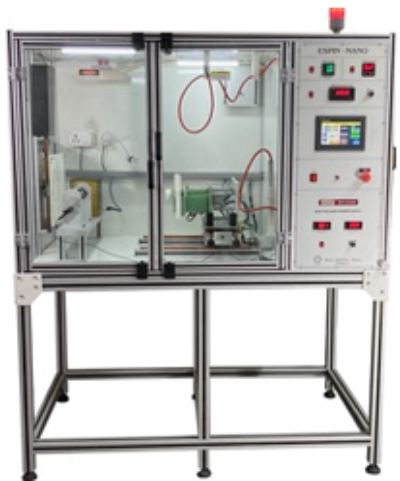

ESPIN NANO MODEL V4-Y

Description Specification
High Voltage
Power Supply
a) + 40 KV
  • Variable from 0 to + 40KV Max Current 1.0mA
  • by means of front panel 10- turn potentiometer. With Dial containing 0-10 Turns Indicator and 100 Division marking for Each Turn
  • With DIGITAL voltmeter and milli ammeter Accuracy 2%
  • Static Removal Device Shorting Stick to remove residual charges
  • Line Regulation: < 0.05% for +/- 10% variation in input voltage
  • Load Regulation: < 0.05% for 10 to 100% Load Variation
  • Protection against Overload & short circuit
  • During Short circuit the Power supply trips and automatically restarts after 2 Sec.
  • Static Removal Device – Shorting Stick
b) - 30KV Variable from 0 to - 30KV Max Current 0.4mA
Syringe Dispenser 4 nos
  • To dispense from 2 nos. Standard Syringes from 2 to 20 ml
  • Fabricated using insulated material and minimal metallic components to work under high voltage conditions and to avoid electric field distortions around the unit
  • Motor control thro’ programmable PLC and Touch Screen
  • to control and indicate flow rate & syringe type.
  • Flow rates 0.1ul/hr to 20ml/min.
  • Flow rate dependent on syringe type
  • Motor torque 2kgcm
  • Standard needles can be fitted to syringes.
  • Direct syringe based spinning no tubing is required.
  • Volume and time based control
Coaxial spinneret
  • Spinneret for coaxial spinning. – 2 nos
  • Tubing to connect syringe with spinneret
Multi Nozzle To fit 5 needles from one syringe – 2 nos
Collector Assemblies
A. Drum Collector
Diameter 100 mm length 300 mm
Speed Variable - 300 to 4000 RPM
B. Disc Collector 300 mm x 300 mm

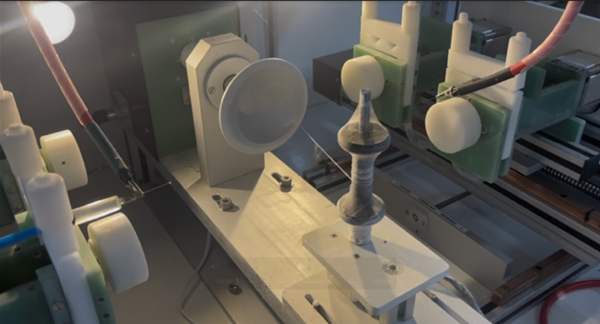

C. Yarn Collector ( Composite Yarn Collector) Funnel based yarn collector
Syringe Translation Stage
  • Movement of 300 mm.
  • 150 mm on each side from mean position
  • Facility to limit movement from 10 to 150 mm independently on either side
  • Digital display of rate of movement with speed control
  • Max traverse speed 1500mm / min. Provision to set desired speed.
Distance Adjustment
2 nos
Motorized Distance adjustment between Syringe and Collector assembly. 250mm
Electrospinning Enclosure Construction

Safety and additional features of cabinet

Standalone Instrument
Aluminum Strut frame with glass/polycarbonate clear panel on the Left side and front doors.
All other panels made of Epoxy based insulated material and aluminum sheets
  • With Static removal device – Residual Charge Discharge Stick
  • Safety switch to switch off H.V. Power supply when door is opened.
  • Hazard lamp to indicate that H.V. Power supply is on.
  • Proper cabin lighting and Exhaust Fan-ventilation and Emergency Stop.
  • Rubber floor mat for user safety
Instrument Dimensions 1800 x 1000 x 1800 in mm ( LxBxH) Approx
Temperature and Humidity Display Digital meters
Spares
  • Standard Disposable syringes of 2 & 5ml 1000 nos. each
  • Aluminum Foils 1000 nos.
  • Sample nylon / PVA solution for Electrospinning
  • 10 Meter Tubing for Coaxial spinning
  • Necessary Cables and Connector
  • Operating Instructions and Warranty Card
Cabin Heating & Provision to heat cabin up to 40°C
Orientation Horizontal Spinning
