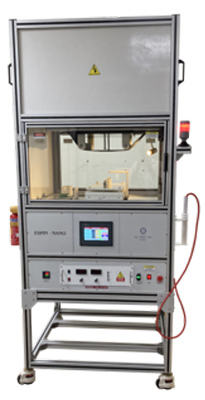

ESPIN NANO Model VFX-N

Sl.No Description Specification
1 Power Supply 0 to 60 KV DC 1mA ( Customizable)
  • With voltmeter & microammeter
  • Max Current 1 mA
  • Vary Voltage by means of front panel 10- turn potentiometer. With Dial containing 0-10 Turns Indicator and 100 Division marking for Each Turn
  • With Digital voltmeter and milli ammeter Accuracy 2%
  • Static Removal Device Shorting Stick to remove residual charges
  • Line Regulation: < 0.05% for +/- 10% variation in input voltage
  • Load Regulation: <0.05% for 10 to 100% Load Variation
  • Protection against Overload & short circuit
  • Input voltage 230-240 V AC 50 Hz.
2 Polymer Pump
  • independent peristaltic pump or high precision pump units
  • Number of pumps as per user requirement from two to six numbers
  • Individually connected to the spinnerets depending on the requirement of nozzle and co-axial spinneret.
  • Silicone tube
  • Flow Rate in the range of 0.30 - 60 ml/min (Customizable. )
  • Flow Rate Precision: 0.01 ml/min
3 Reservoir
  • Reservoir for Polymer- Removable
  • Provision to view polymer level in reservoir.
  • 200 to 2000mL (Customizable. )
4 Tubing
  • Silicone tubing to connect reservoir to electrode thro peristatic pump
5 Electrode
  • Interchangeable spinnerets with bottom up spinning and continuous feeding system
  • Nozzle based spinning with >50 feeding nozzles
  • Nozzles numbers customisable as per user requirement.
  • provision to use with one nozzle
  • Nozzle diameter 0.2mm and above as per user requirement.
  • Co-axial spinnerets with at least four special designed coaxial nozzles
  • Core shell nozzles as per user requirement
6 Collector
  • Roll-to-roll collection and Conveyor belt
  • Width of the collector ≥ 500 mm (customisable)
  • Primary roller to load uncoated substrate.
  • Secondary roller to roll coated substrate
  • Simple mechanism to load / unload the rollers
  • Conveyor and roll to roll collector be easily interchangeable.
  • Roll to roll continuous coating.
  • Conveyor belt repetitive coating
  • Speed control to vary from 10mm / minute to 6000mm/minute (Customizable)
  • Conveyor movement along X-Axis
7 Distance Adjustment Z-Axis
  • Easy distance adjustment between collectors during operations with the below mentioned axis controls.
  • Z axis Distance between the nozzles and the collector adjustable from 50 –300 mm.
8 Electrode Translation Stage Y Axis
  • Y axis- automated linear emitter motion – Electrode movement
  • Electrode mounted on translation stage
9 Temperature and Humidity Display
  • Cabin heating till 45oC. Controller with Digital Display
  • Optional - Dehumidifier to control humidity from ambient to less than 20% RH
10 Chemical safety
  • Exhaust to evacuate solvent vapours.
  • Exhaust ducts to evacuate solvent fumes from the chamber.
11 Cabinet
  • Ergonomically designed so that the operator can easily access the spinning and Substrate handling areas as needed
  • Proper grounding to protect against electric shock.
  • Enclosure fabricated using insulated material
  • Cabin Light for chamber illumination
  • Back Light to view Jet
  • Proper cabin lighting
  • The chamber with glass / transparent window to view real time
  • spinning operation and inert gas purging facility. (Optional)
12 Safety & Additional Features of Cabinet
  • Residual Charge Discharge Stick
  • Safety switch to cut off H.V. power supply when door is opened.
  • Appropriate interlocks on all doors.
  • Hazard lamp to indicate that H.V. power supply is on.
  • Emergency button and safety relay
  • Electrical Isolated & Grounded Cabinet
  • Rubber floor mat for user safety
  • All exterior surfaces safe to touch during operation
13 Control panel
  • Emergency stop with main ON/OFF.
  • Touch screen panel to adjust all the parameters. Spinning distance, Flow rate, Conveyor Speed, Electrode Translation
  • Touch screen control panel with well-designed user-friendly interface
  • Recipe and recalling all parameters

14 Accessories
  • Standard spinning samples
  • Chemical resistance tubing
  • Necessary spares
